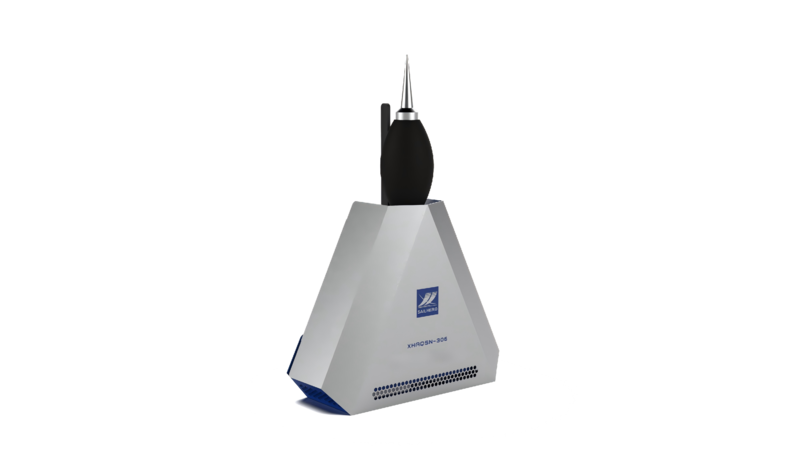

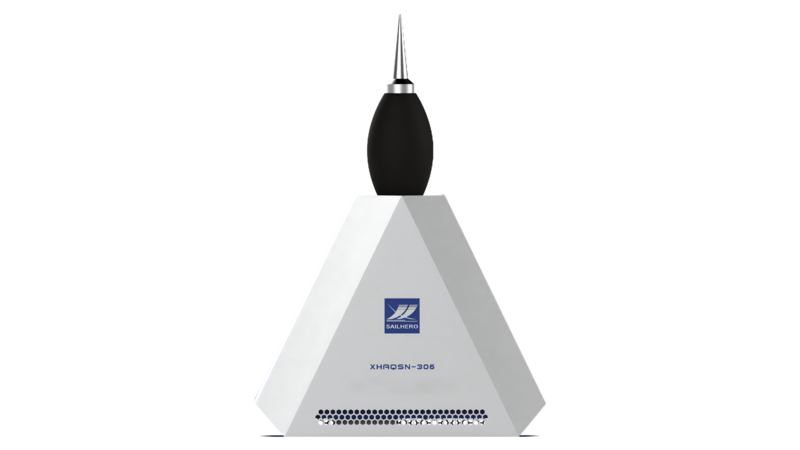

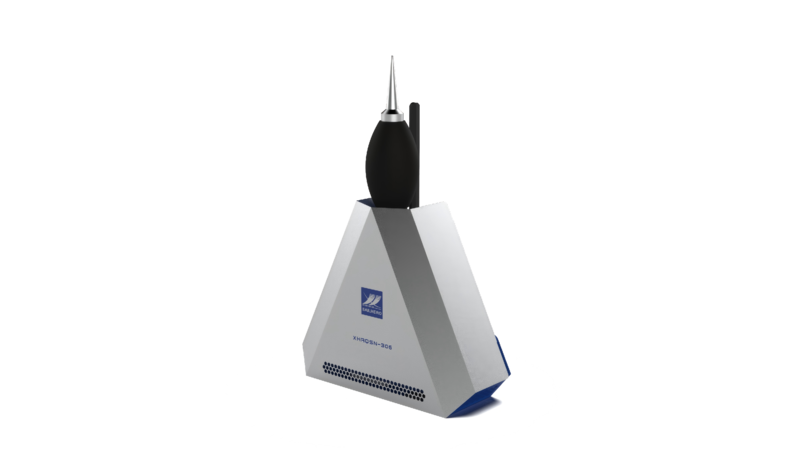

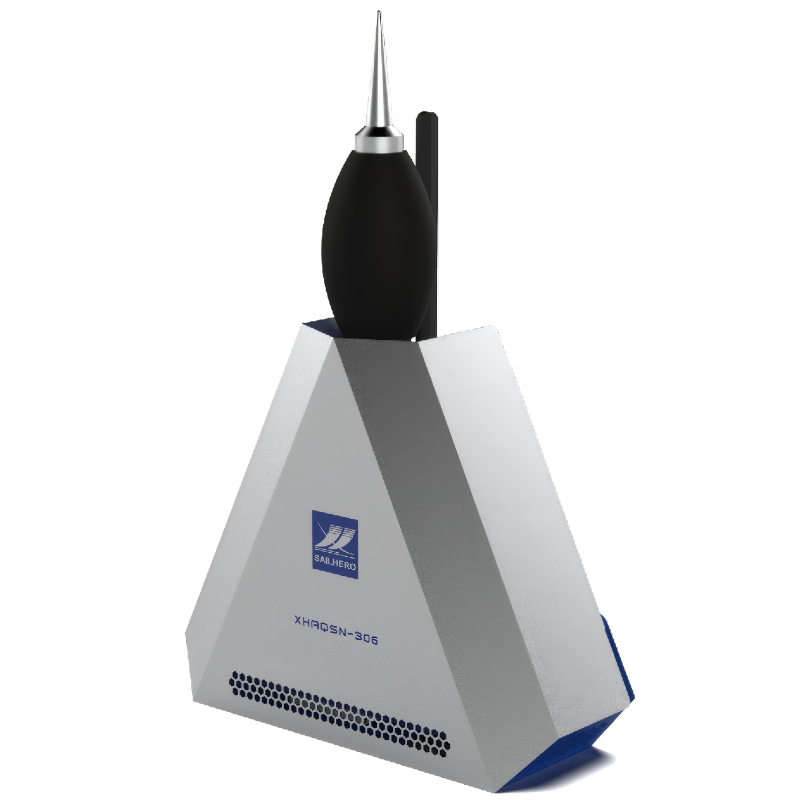

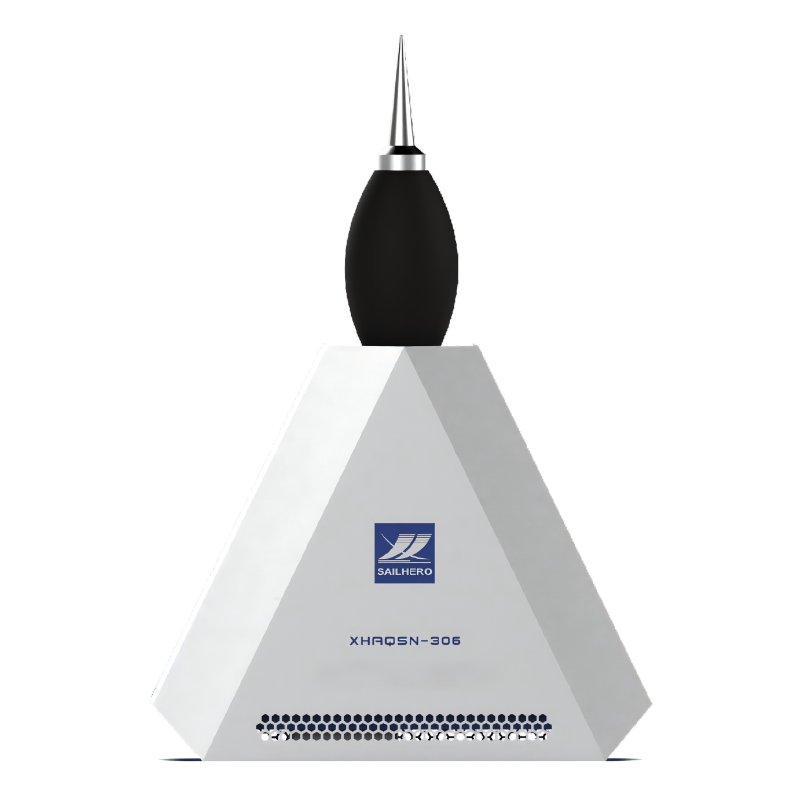

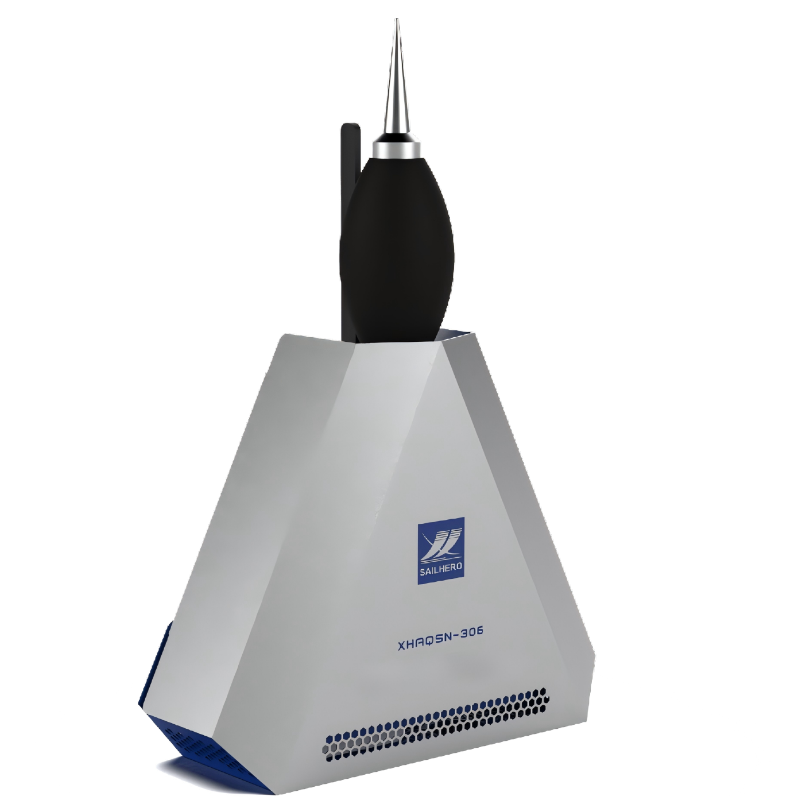

XHAQSN-306 Industrial Online Health Monitor is an industrial online health monitoring instrument, which can realize real-time online monitoring of total dust, respirable dust, TVOC, noise, CO₂ and other parameters in ambient air, and supports the expansion of more monitoring parameters according to customer needs. It is small in size, light in weight, and easy to install and maintain. The device can display location information to facilitate data analysis, and adopts a modular design with high flexibility for parameter expansion.
Main Characteristics
Small size, light weight, easy to install and maintain;
Location information can be displayed for data analysis;
Modular design, flexible for parameter expansion.
XHAQSN-306 Industrial Online Health Monitor is an instrument that monitors parameters such as total dust, respirable dust, TVOC, noise, and CO2 in ambient air online (the instrument can be expanded to monitor additional parameters according to customer needs).
The monitor uses a high-precision infrared sensor to accurately measure CO2, a high-precision optical sensor to measure ambient particulate matter, and the PID principle to monitor organic pollutants such as TVOC. The sensors have high measurement accuracy, respond quickly, and provide accurate readings. It has GPS positioning function, and the monitoring data can provide location coordinate information, so as to reflect the air quality of the corresponding location in real time, which is convenient for source investigation and data analysis.
The monitor uses 4G communication (compatible with 3G and 2G), and the monitoring data is transmitted to the server in real time via wireless communication. You can view the real-time measurement data through a web page or mobile app.
Suitable for monitoring the working environment in parks, enterprises, and workshops. Enterprise managers can use the enterprise management platform to view the pollution status of monitoring points in real time, adjust and optimize the working environment at any time, and protect the physical and mental health of workers.
Environmental law enforcement departments can use the management platform to conduct real-time monitoring of each enterprise within their jurisdiction, as well as view historical enterprise environmental data. They can also rank the environmental quality of different enterprises and different points of the enterprise to provide data
support for environmental law enforcement.
| XHAQSN-306 |
|
| Parameter |
Total dust, respirable dust, TVOC, noise, CO2 |
|
| Time resolution |
1min |
|
| Equipment dimensions |
320×120×260 (mm) |
|
| Weight |
2.5 Kg |
|
| Power supply |
City electricity supply |
|
| Rated operating voltage (Current model) |
DC (12 ± 2) V |
|
| Rated power (Current model) |
6W |
|
| Communication method |
4G/3G/2G |
|
| Working environment |
T (-20 to 55)°C, RH (0% to 95%) non-condensing |
|
| Particulate Matter – Performance Indicator |
| Parameter |
Total dust |
Respirable dust |
| Measurement range |
(0–10,000) μg/m3 |
(0–10,000) μg/m3 |
| Minimum resolution |
1 μg/m³ |
1 μg/m³ |
| Measurement accuracy |
(0–100) μg/m3 |
±20 μg/m3 |
±20 μg/m³ |
| (100-10,000) μg/m3 |
±20% |
±20% |
| Parameter |
Noise |
| Measurement range |
(20 to 135) dB |
| Minimum resolution |
0.1 dB |
| Measurement accuracy |
0.3 dB |
| Frequency response |
10 Hz to 20 kHz |
Platform Development
The instrument is developed with a health environment monitoring system platform. According to management permissions, the platform is divided into two types of permissions: administrator and enterprise.
The administrator is the environmental protection monitoring department, and can see all monitored enterprises in the jurisdiction, as well as the ranking of all measurement points. Click on the corresponding enterprise in the jurisdiction to display the enterprise interface and data, as well as the ranking of the same parameter for the enterprise’s internal measurement points. You can view the real-time data of all measurement points in the jurisdiction and the historical data of a specific measurement point. You can analyze the data curve for a single parameter for multiple measurement points in the jurisdiction, and data export is supported. The administrator can add or modify enterprise information in the jurisdiction.
The enterprise account can only view the data of the enterprise itself. It can rank the same parameters of the enterprise’s internal test points, view the real-time data of all the enterprise’s test points and the historical data of a certain test point, and analyze the data curve of a single parameter of multiple test points, and data can be exported.
